SPECIFICATIONS

Application: Adults

Battery Capacity: 21Ah,21Ah

Battery Lock: Key Power & Lock

Battery Position: Down Tube

Brake: Hydraulic Disc Brake

Braking System: Javelin hydraulic disc brake set

Brand Name: Brand-eJavelin hydraulic disc brake set

Charging Time: 3-5 h

Color: Black ...Customizable

Derailleur: Shimano RD-M2000 rear derailleur (9SPD)

Frame Material: 6061 aluminum polycarbonate & ABS

Gears: 9 SPEED

Max Speed: 30~50Km/h

Max. Effective Torque: full Size 160Nm mid size 120Nm

Model Number: EJA-CRUISER-EB03

Motor Power: 1000 W,850W

Motor position: Rear Hub Motor

Place of Origin: Guangdong, China

Power Supply: Lithium Battery

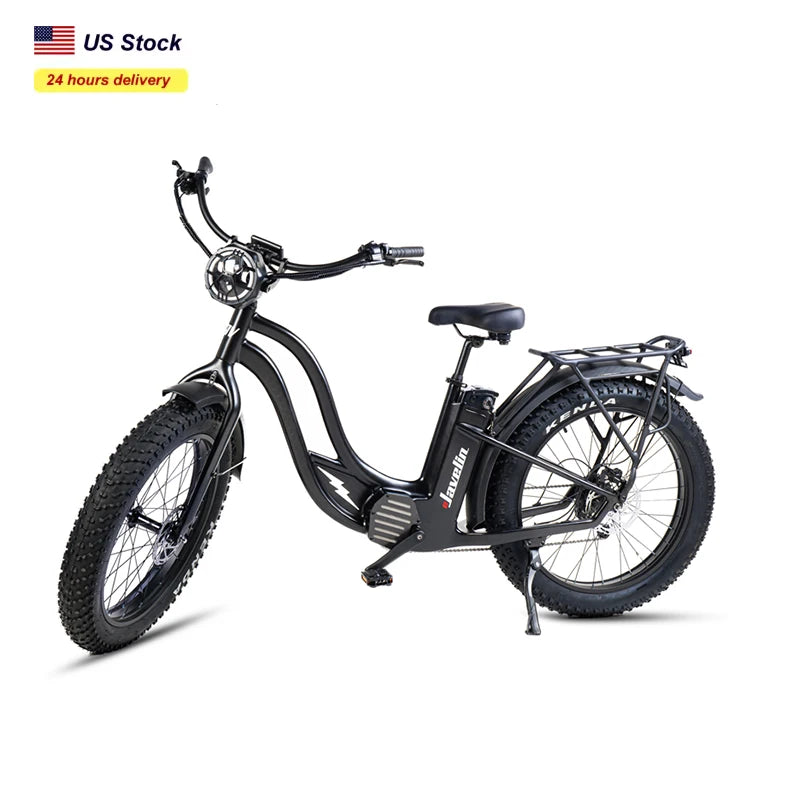

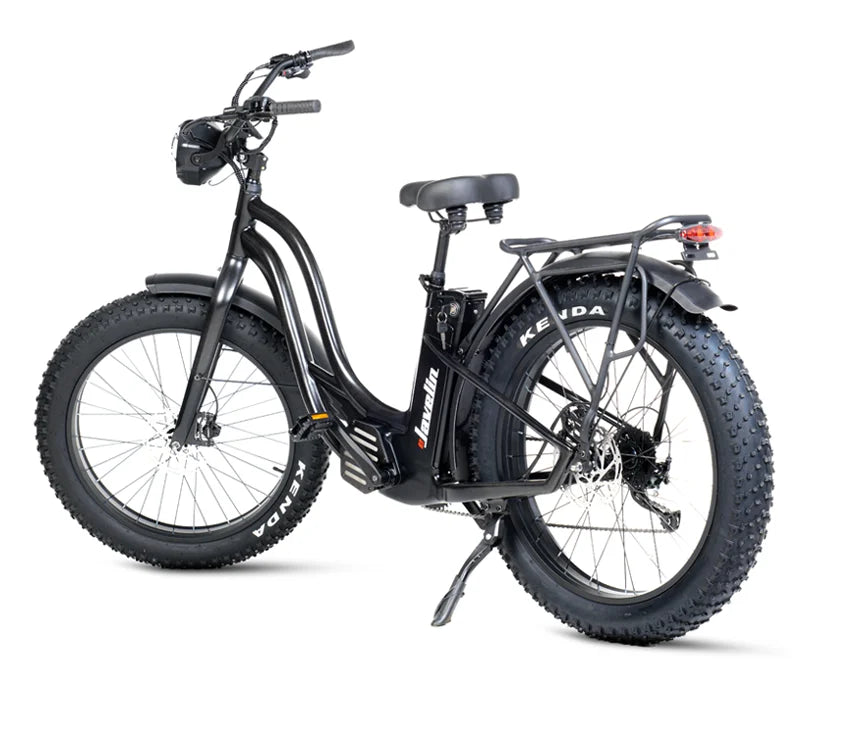

Product name: Fat Tire Electric Bike

Rated Power: full Size 1000W, mid size 850W

Smart Type: Sensor,Bluetooth,Electronic,Digital,Voice Control,LONG RANGE,High Speed,Off-Road

Type: Mid-Drive

Voltage: 52V

Warranty: 24 Months

Weight: full size 5.6Kg, mid size 4.5Kg

Wheel Size: 26"

Optimized Balance, Fast, Laidback & Fun. ★Powerful mid-drive pedal assist vehicle for carrying cargo, sports equipment, fun in the city, on suburban streets, and off road. Easy and fun to ride and engineered for smooth acceleration and superior range per charge.

★The Cruiser integrates a lightweight carbon fiber (T800 / T1000) frame with quality 9 speed gearing. This allows the implementation of a large powerful motor and battery, while achieving a maximized weight to power ratio. ★The Cruiser's integrated drivetrain will achieve excellent range per charge, while providing users with targeted easy to choose & intuitive pedal assist options for a range of riding circumstances. Riders can effortlessly change performance settings, integrated to the custom eJavelin user interface that is displayed on a high quality, color TFT LCD. The LCD is weather resistant, rated at IP66, and features a USB charging port that will charge any standard smartphone. ★The Cruiser features a Step Though frame design, that also centers the motor and battery weight, at a low center of gravity, directly under the rider. This results in a bike that is very well balanced & not at all top heavy (which is a design flaw of many e-bikes). The Cruiser is easy to mount and dismount for tall to medium build people. The eJavelin Cruiser performs well in turns, and rides / feels light despite its powerful motor and battery. Featuring large 26 inch by 4.5 inch well-treaded tires, the eJavelin Cruser is smooth and fun to ride over paved roads, and performs well in loose terrain and snow. ★eJavelin has engineered the Cruiser will fully integrated Lighting featuring: a powerful 900 lumens front headlight, and night time rear safety lighting. The rear lights display braking and also offer left and right signaling.

Product Description

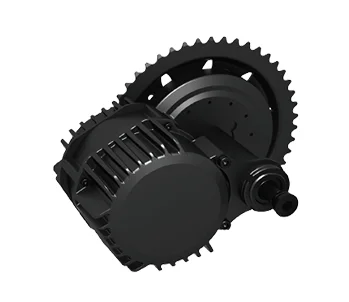

Motor

● Type: Mid-Drive ● Rated Power: full Size 1000W, mid size 850W

● Nominal Voltage: 52V ● Max. Effective Torque: full Size 160Nm mid size 120Nm

● Weight: full size 5.6Kg, mid size 4.5Kg ● Weatherproof Rating: IP65

● Certification: CE / EN14764 / ROHS

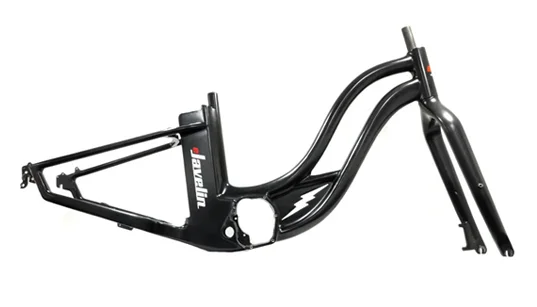

Frame

●Lightweight & strong Toray T800/T1000 carbon fiber, internal guttering (wires inside the frame), fully enclosed motor housing, integrated battery mount housing.

●eJav Frame Flex custom carbon fiber layup provides ambient shock absorption in the horizontal plane and stiffness in the lateral plane, without adding weight

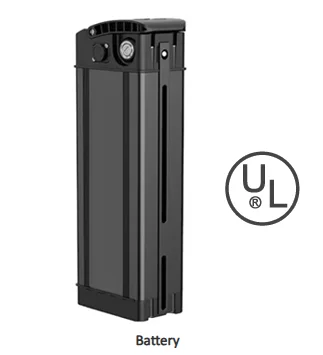

●  Certification: UL certified SGSNA/24/SZ/00296U

●  Power Output: 52V, 21Ah

●  Cell Type: Samsung lithium ion 18650

●  Housing Materials: 6061 aluminum, polycarbonate & ABS

●  Charger: 52V, 3A, 110-240V, 4-5 hours fast charging

●  Battery Lock: Key Power & Lock

Wheels

● Rims: full size 26'' x 4.0'' mid size 24'' x 4.0'' aluminum spoke

● Tires: KENDA Juggernaut, 30 TPI casing, wire bead, KVS aramid weave puncture resistant, fat tire, rugged off-road tread

● Tire Size: full size 26'' x 4.5'', mid size 24'' x 4.0''

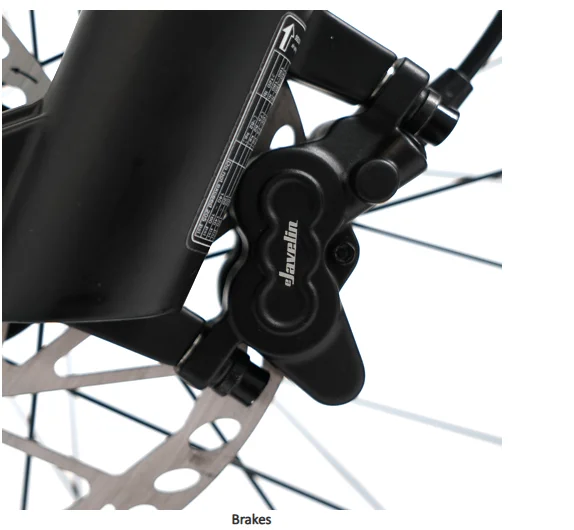

● Brand: eJavelin hydraulic disc brake set

● System: rugged 4 piston system with power cut-off sensor

● Rotor Discs: YR180mm x 2.3mm

● Front Set: 4 piston AY-08, YR180mm x 2.3mm

● Rear Set: 4 piston AY-08, YR180mm x 2.3mm

● Cassette: Shimano CS-HG200-9 speed

● Chain Wheel: 46 tooth chromium molybdenum steel

● Chain Wheel Guard: tooled aluminum

● Chain: KMC Z9 9 Speed

● Chain Wheel Cranks: aluminum alloy crank full size 6.69″ / 170mm, mid size 5.98″ / 152mm

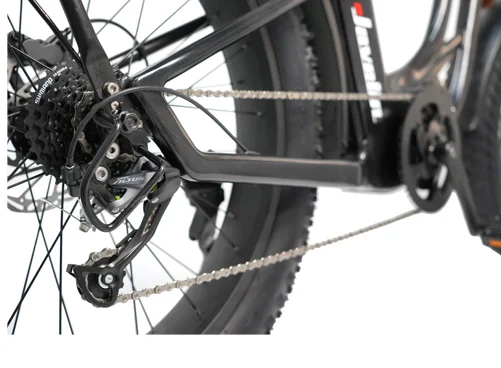

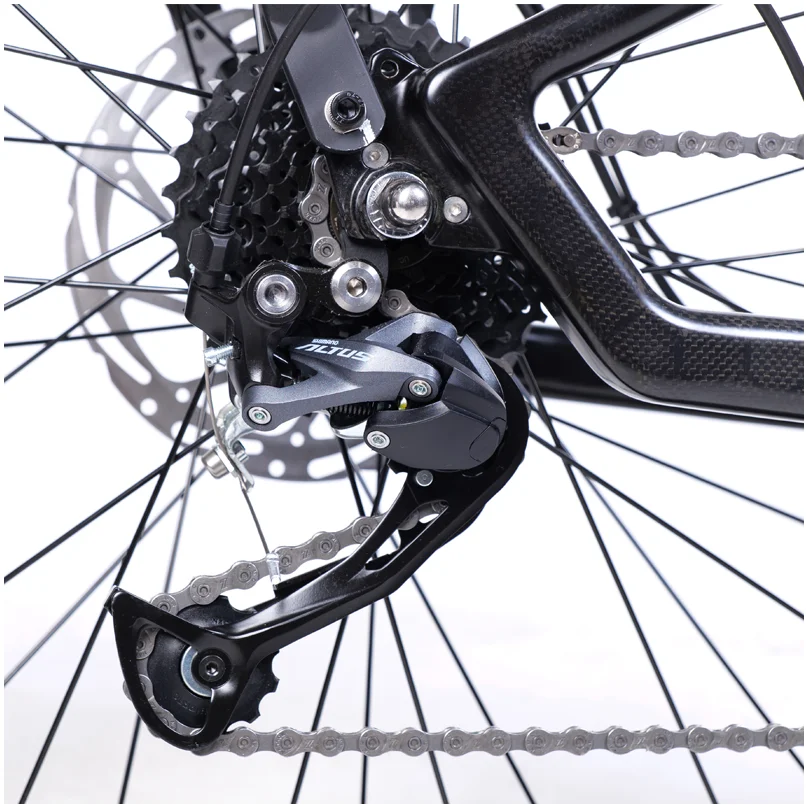

● Derailleur: Shimano RD-M2000 rear derailleur (9SPD)

● Pedals: polycarbonate housing & frame, boron steel center axle, 2DU bearings, built-in reflectors & innovative fold-up design

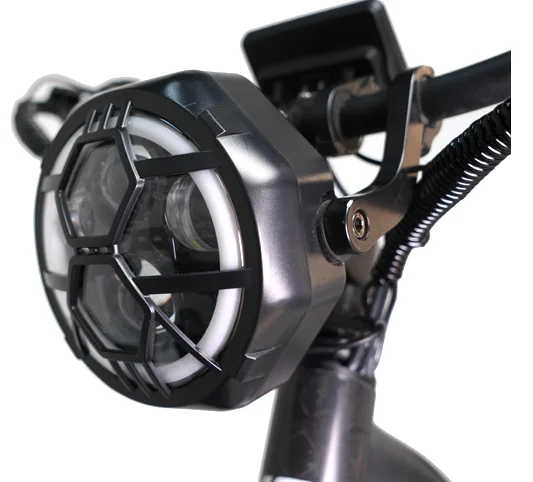

● Integrated Headlight: IP64 weather resistant, 900 lumens, 160mm x 147mm, beam range of up to 6 meters

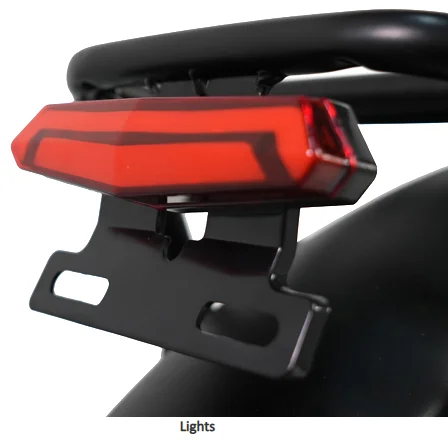

● Integrated Taillight: IP64 weather resistant, with braking left & right turn signaling

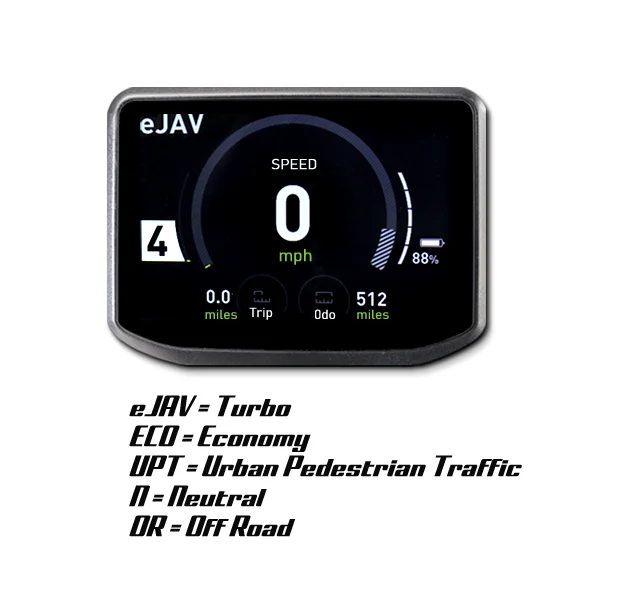

● Display: large 3.5'' TFT color LCD, IP66 weather resistance, USB charge port with weather guard for charging smart phones.

● Display Functions: speed, power, battery, trip distance, odometer, PAS OR (off road), N (neutral), UPT (urban pedestrian traffic), ECO (optimal range performance, eJAV (turbo).

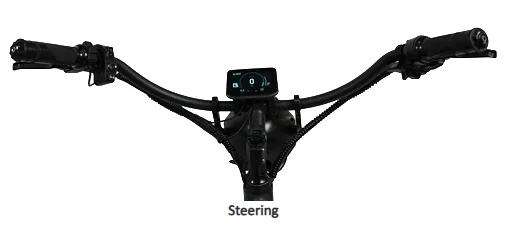

● Handlebar: AL6061-T6 aluminum, rise 50mm, width 700mm, back sweep 23 degrees, barbore 25.4mm, weight 350 grams

● Grips: Dupont Kapton polyimide triple density material, single side ring clamp, easy to install & remove with tight secure fit & ergonomic design.

●Optional Throttle: right hand, motorcycle style full grip twist, ABS polycarbonate material, input 5V, output 0.8-4.2V, with matching left-hand grip

●Shifter: 9 speed L-TWOO 2:1 A5 shift lever

●Integrated Switches: system on / off, headlight on / off, left light signaling, and horn

●Stem: adjustable max. 60 degree, 110mm length, 200 grams forged aluminum with quad titanium handlebar mount bracket screw set

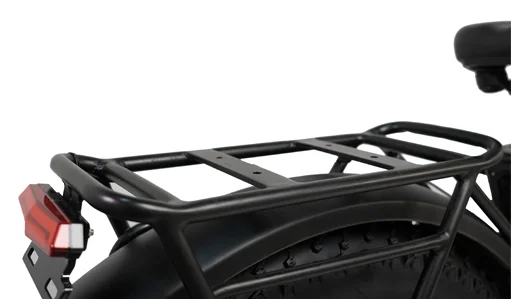

●Rear Rack: 46cm x 18cm, aluminum, 45Kg suggested max load capacity

●eJav Saddle Bag Compatible: yes

●eJav Side Mount Carry System Compatible: yes

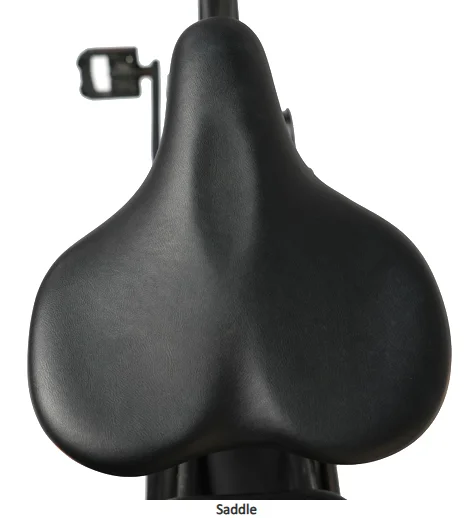

● Construction: polycarbonate core wrapped in durable memory foam with weather resistant PU covering, extra comfort width design & aluminum swivel height adjustment clamp

● Seat Dimensions: length 260mm, width 240mm, height 60mm, weight 800 grams

● Tube: 6061 aluminum 27.2mm x 400mm

FAQ

Question1: Does it ship from the US ? Yes, our warehouse is located in Dallas, Texas , USA. Your Goods will be shipped from there in real time. Question2: What kind of logistics transportation method is used ? We cooperate with three overseas logistics partners, namely UPSP, UPS and Fedex. The warehouse staff will choose the corresponding channel according to the weight of your goods. Question3: Is it delivered to your door?How long is the shipping time? Yes, your package will be delivered to your designated location. Shipping time is about 2-5 days. Question4: Do you accept small quantity orders? Yes, we accept small quantity sample orders for your testing, but not for free, therefore customers need to pay for samples and freight. However we can return back the amounts once large quantity orders are made. Question5: Do you accept ODM & OEM? OEM and ODM are highly welcomed. We can customize the products and packages according to customers’ detailed requirements. Question6: How about the quality of your products? Quality is our core culture. All our products have OVP, OCP, OLP, OTP,SCP and all have passed UL MFI CE FCC ROHS certificates. Question7: How about the after-sales services? We will make up for the goods in your next order for the original quality matters or other problems caused by us according to the sales contract.

Specification

Gears	9 SPEED
Frame Material	6061 aluminum polycarbonate & ABS
Wheel Size	26"
Voltage	52V
Power Supply	Lithium Battery
Braking System	Javelin hydraulic disc brake set
Battery Capacity	21Ah
Motor position	Rear Hub Motor
Battery Position	Down Tube
Smart Type	Sensor, bluetooth, Electronic, Digital, Voice Control, LONG RANGE, High Speed, Off-Road
Brand Name	Brand-eJavelin hydraulic disc brake set
Model Number	EJA-CRUISER-EB03
Charging Time	3-5h
Brake	Hydraulic Disc Brake
Motor Power	1000w, 850W
Type	Mid-Drive
Rated Power	full Size 1000W, mid size 850W
Max. Effective Torque	full Size 160Nm mid size 120Nm
Weight	full size 5.6Kg, mid size 4.5Kg
Battery Lock	Key Power & Lock
Derailleur	Shimano RD-M2000 rear derailleur (9SPD)
Product name	Fat Tire Electric Bike
Max Speed	30~50Km/h
Color	Black ...Customizable
Warranty	12 Months
