Electric Bicycle LCD 600C Bluetooth Display BF-UART Instrument 500C NEW Speed Applicable To Bafang Mid Hub Motor 36V 48V 52V

Electric Bicycle LCD 600C Bluetooth Display BF-UART Instrument 500C NEW Speed Applicable To Bafang Mid Hub Motor 36V 48V 52V

$54.99 USD
$0.00 USD $54.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

SPECIFICATIONS

6KM/Walk Mode: Long Press" - "

Brand Name: Broercok

Communication Protocol: BF-UART

Compatible With: Bafang Motor Kits

Default Password: 1919

Default Speed Limits: 99KM/H

Display Connector: 5 Pin Female

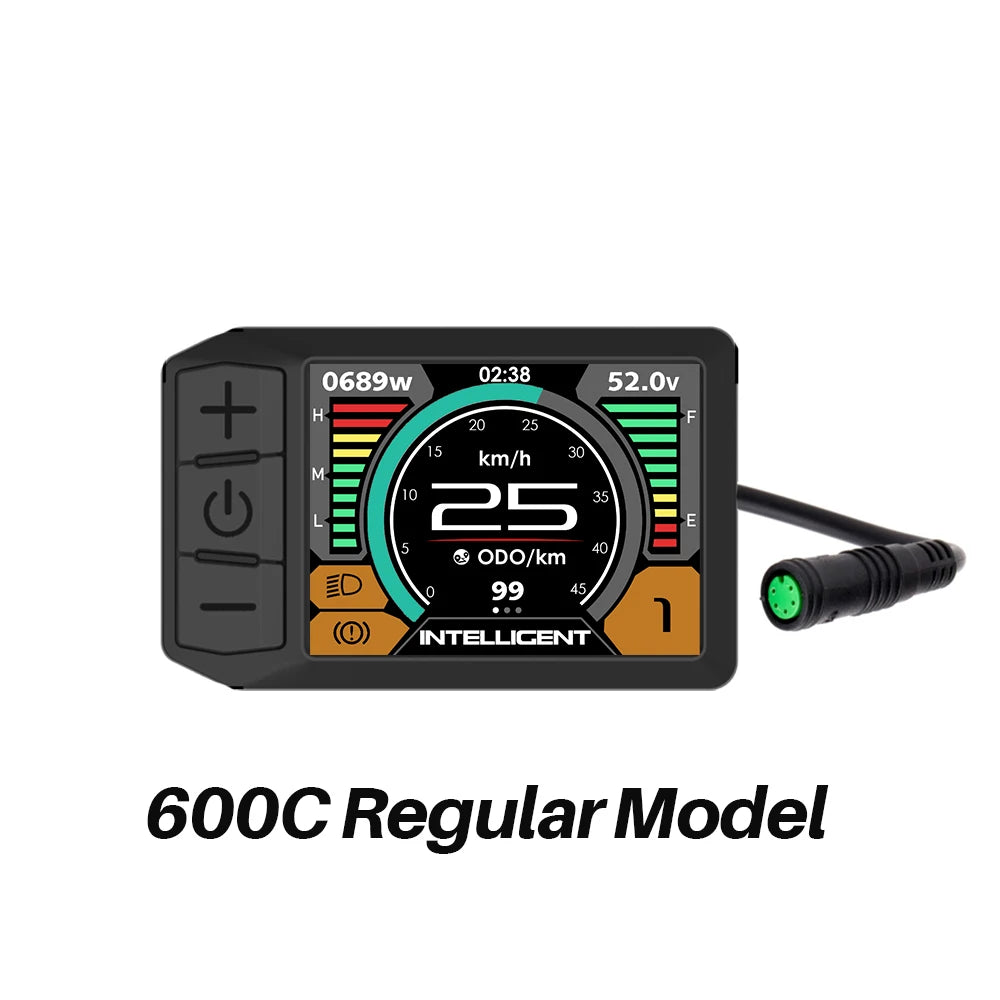

Display Name: 600C / 500C NEW

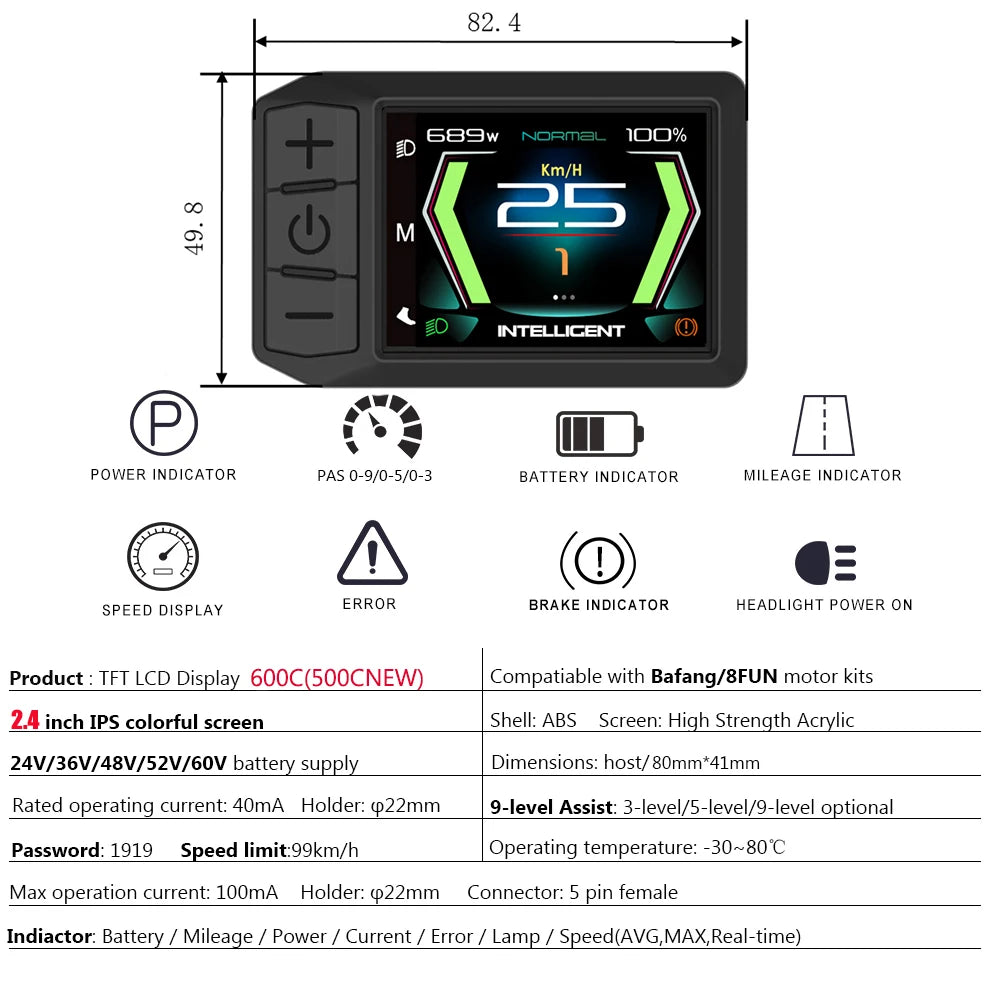

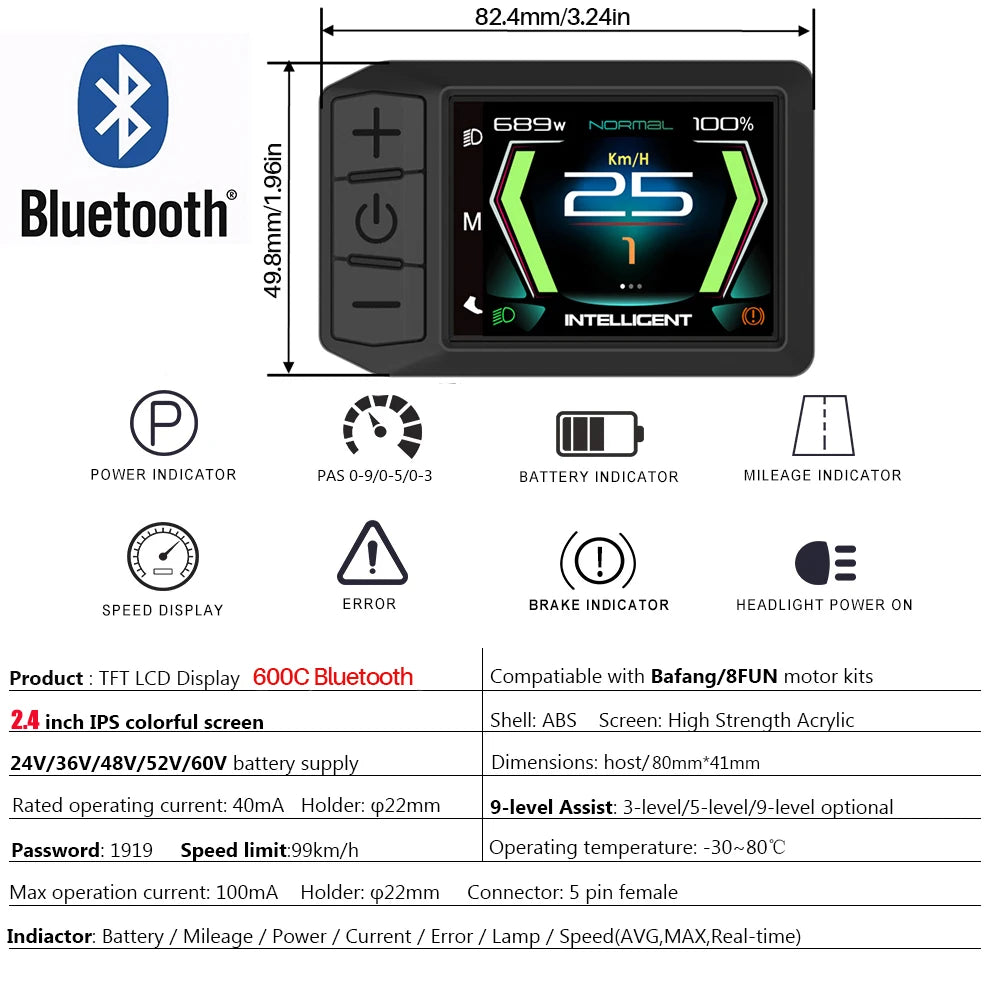

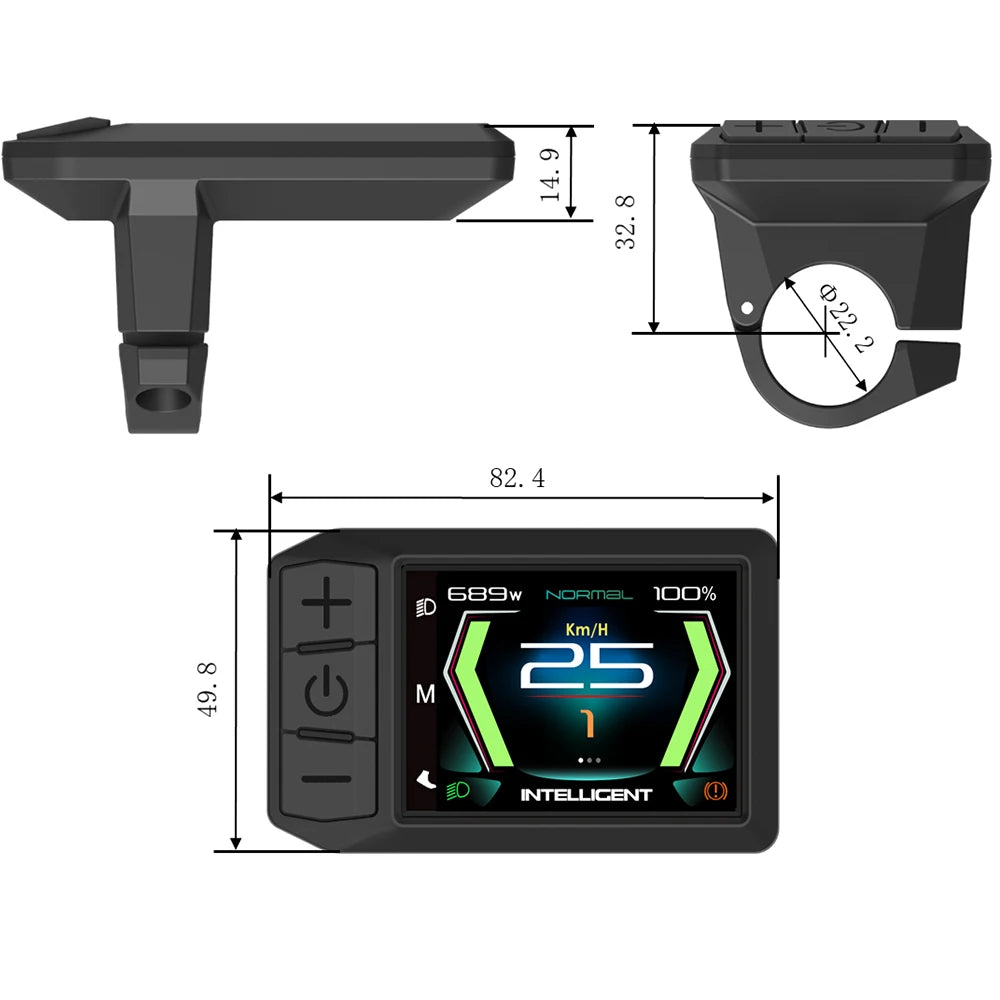

Display Size: 49.8*82.4 mm

Display Voltage: 36V/48V/52V/60V

Headlights Turn On: Long Press "+"

Hign-concerned Chemical: None

Holder Diameter: 22.2 mm

Origin: Mainland China

Speed Mode: 0-3/0-5/0-9

Type: Display

Warranty Period: One Year

Waterproof: IP 65

Note

  • Display Only Applicable To Bafang Mid/Hub Drive Motor Kits.

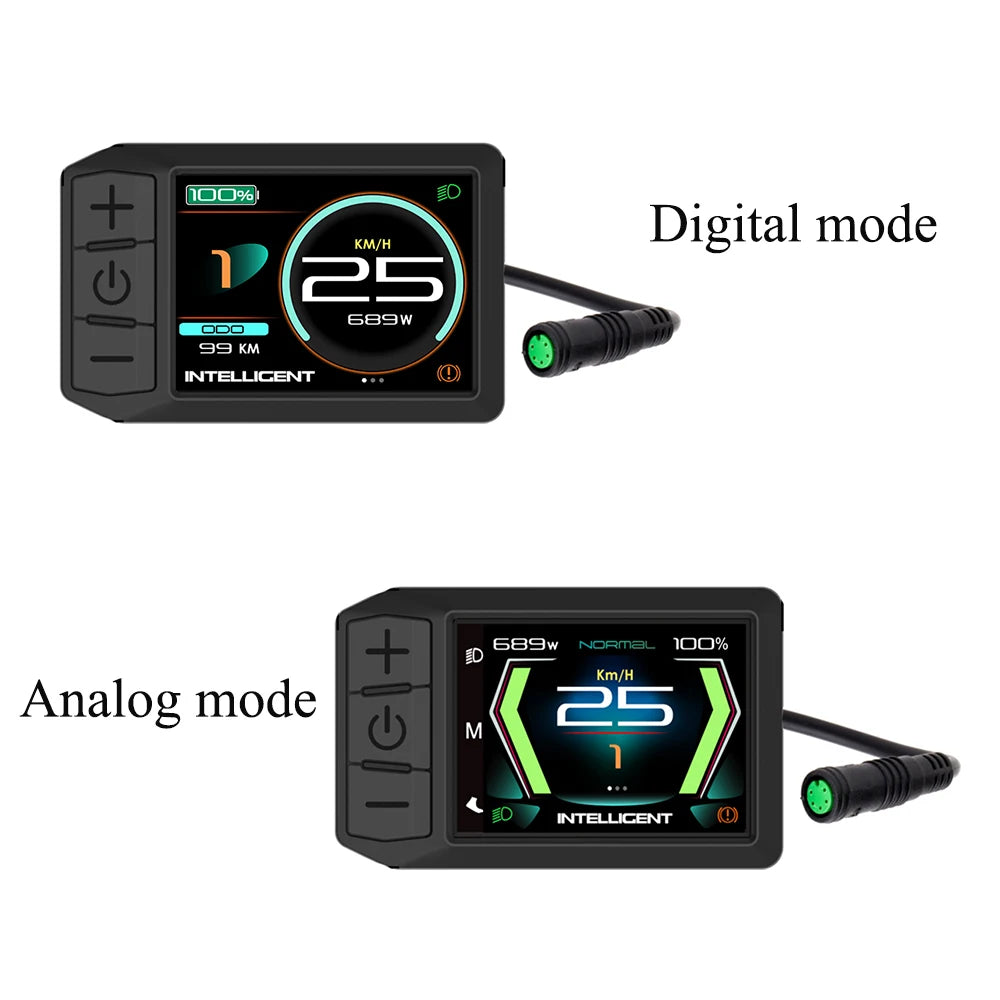

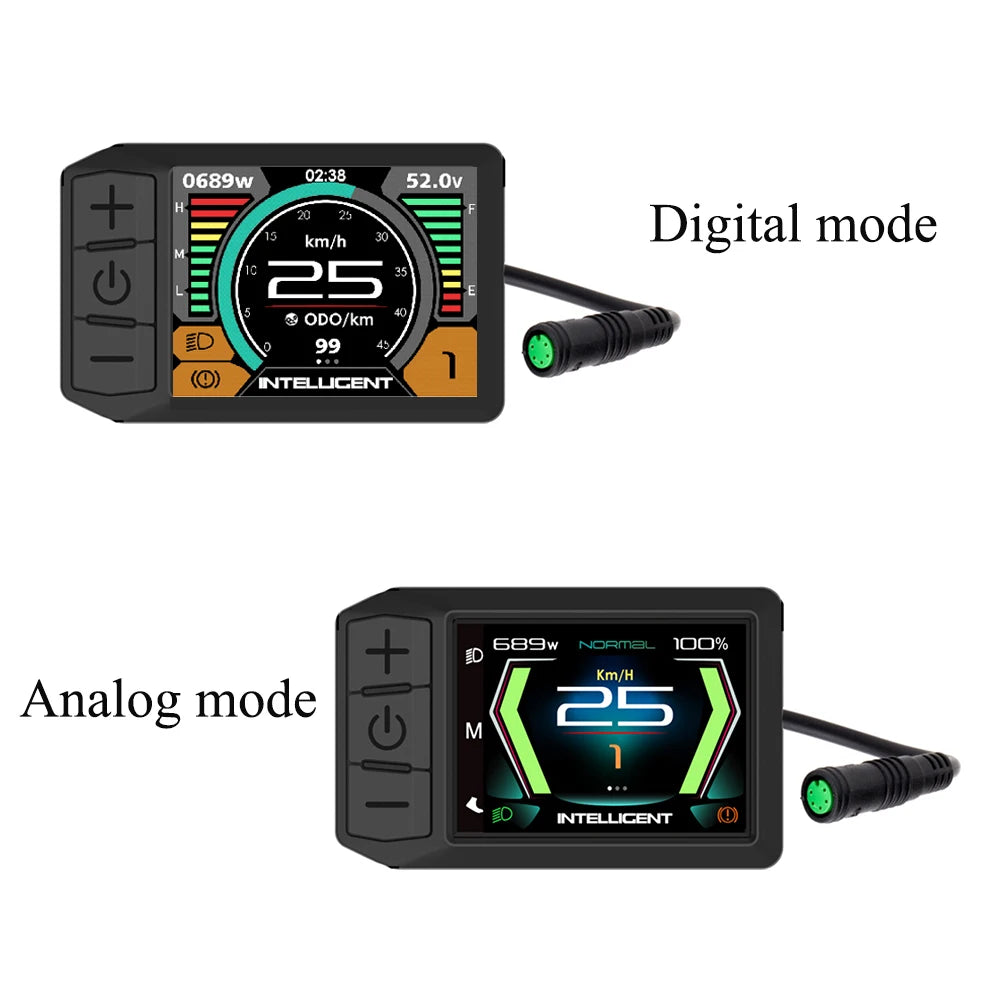

  • All the version 600C have two interfaces which can be change by yourself.

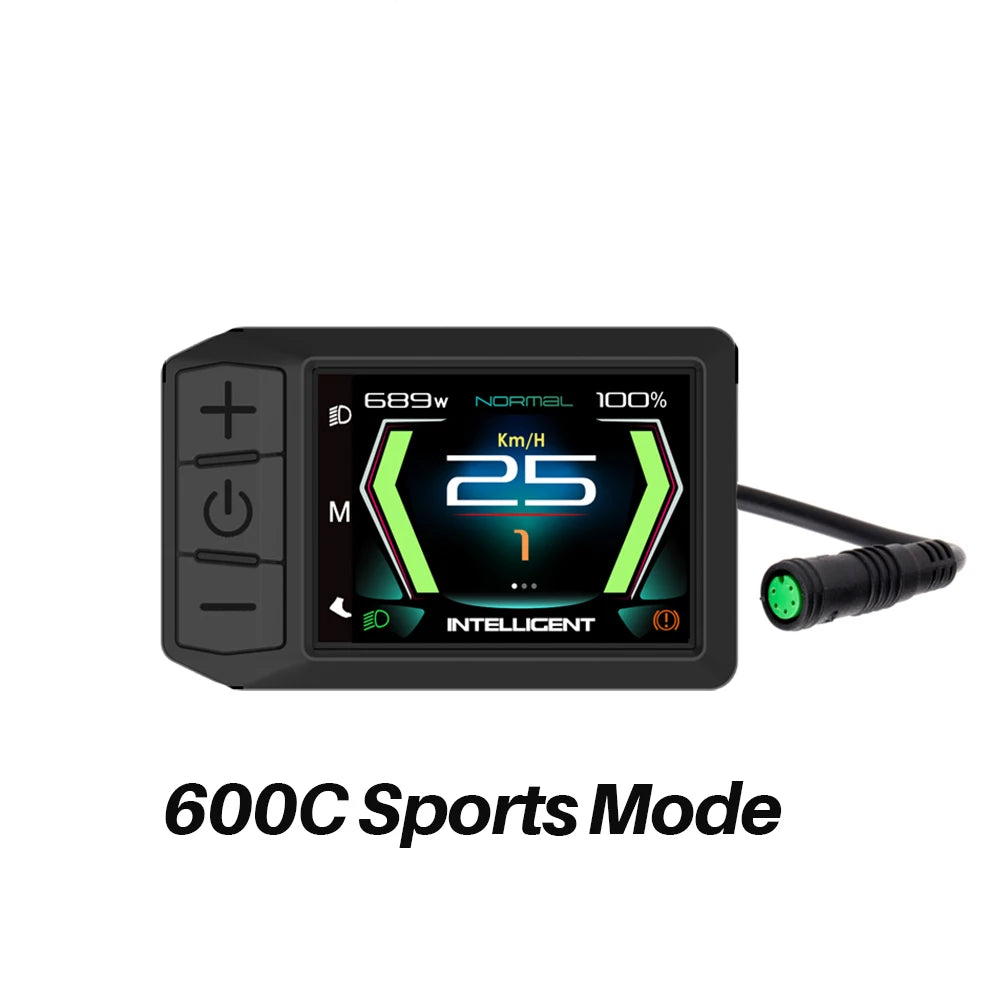

  • Only 600C Sports Version Have Sports Model Functions.

  • Communication Protocol:BF-UART.

  • Connector: 5PIN Female Circular Connector.

Note：If your motor is not Bafang brand,these goods not fit for you,if your motor kits use other Communication Protocol,this display not fit for you too,please contact with us before you make order except you make sure our display fit for you .We can also customize the display.


Other Related Information

UART has two protocols, BF-UART and 5S-UART, which are not universal. General UART protocols can be determined by the connector，most of the 5pin circular connector uses the BF-UART protocol, while the male connector uses the 5S-UART protocol.The CAN protocol uses triangular connectors.

Highlights:

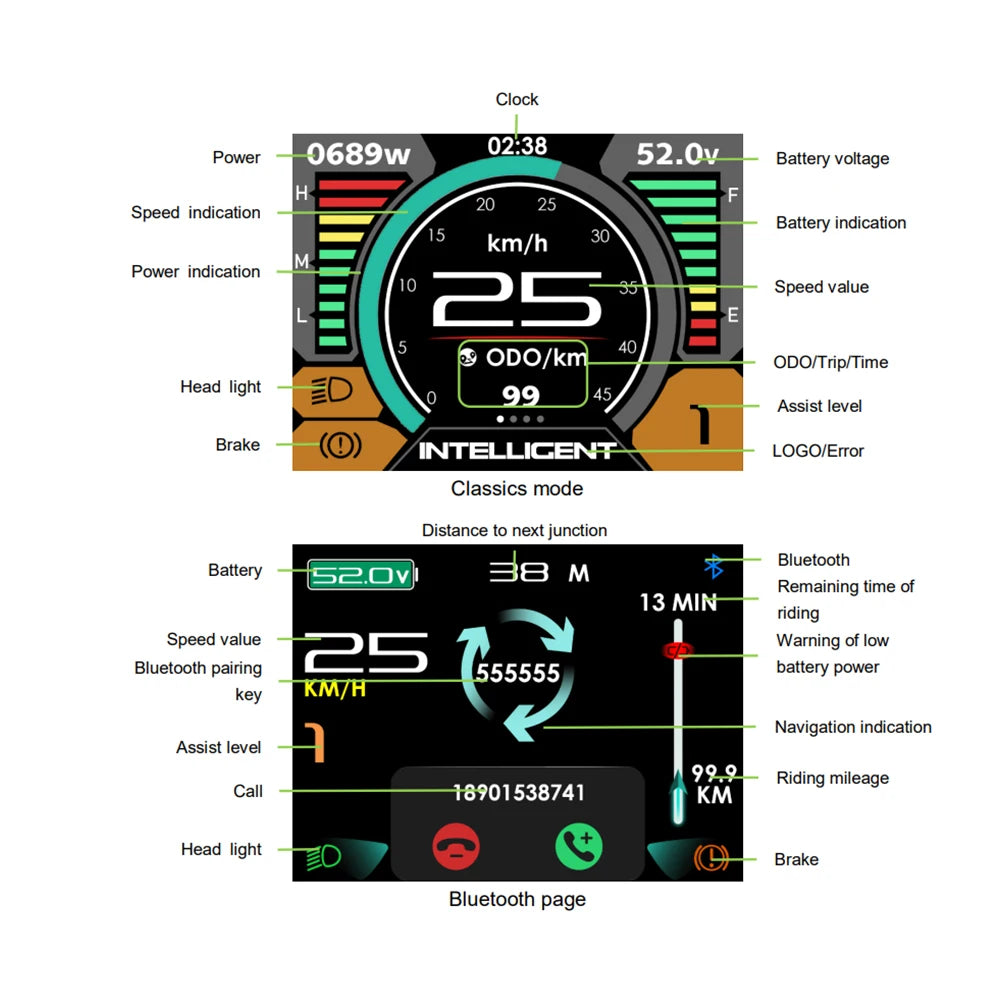

  • 600C/500C NEW 2.4 inch LCD E-Bike Display

  • 1,Compare with 500C,Advantages: size more biger,to interface modes,the latest system；

  • 2,Real-time Battery Power Show Clearly And Accurately

  • 3,Color Full LCD Display & Waterproof

  • 4,AVG SPEED, MAX SPEED, SPEED(Real-time).

  • 5,Total Kilometer/Mile Distance , Time ,Speed and PAS Level Indicator

  • 6,CE RoHS
    Caution:

Do not plug in or unplug this display when the power to the unit is on.
Avoid collisions.
Protect the display’s membrane to provide water resistant performance.
Do not attempt to reset parameters if the display is not working.Call for service if the display is not working.

  • This600C/500C NEW display have double layer cover protection,remove one of the protection cover it will look nice. Due to the 600Cproduction process,we can not make sure the protect cover look like new,we promise to all the 600C buyer:1,all our store goods is new goods;2,if you remove one of 600C protective cover,it will look nice;If you turn on this 600C display,you won't regret buying it.

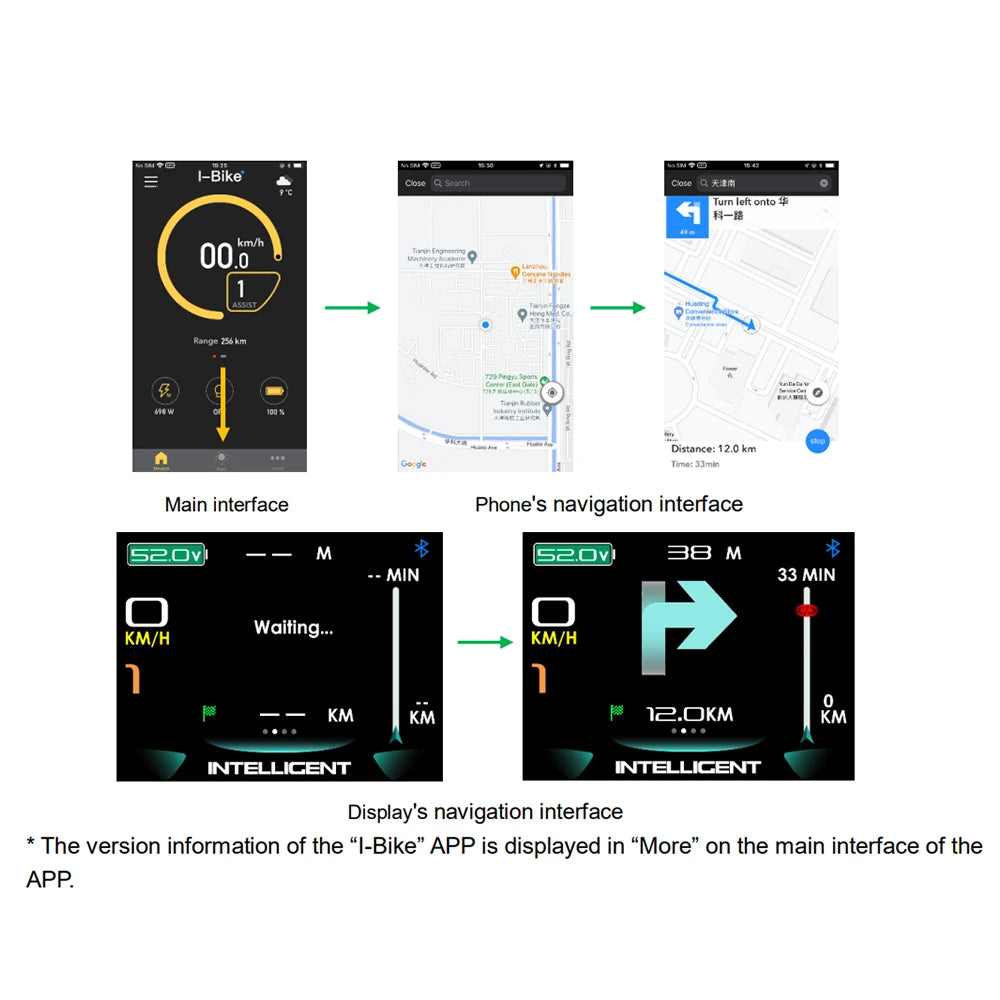

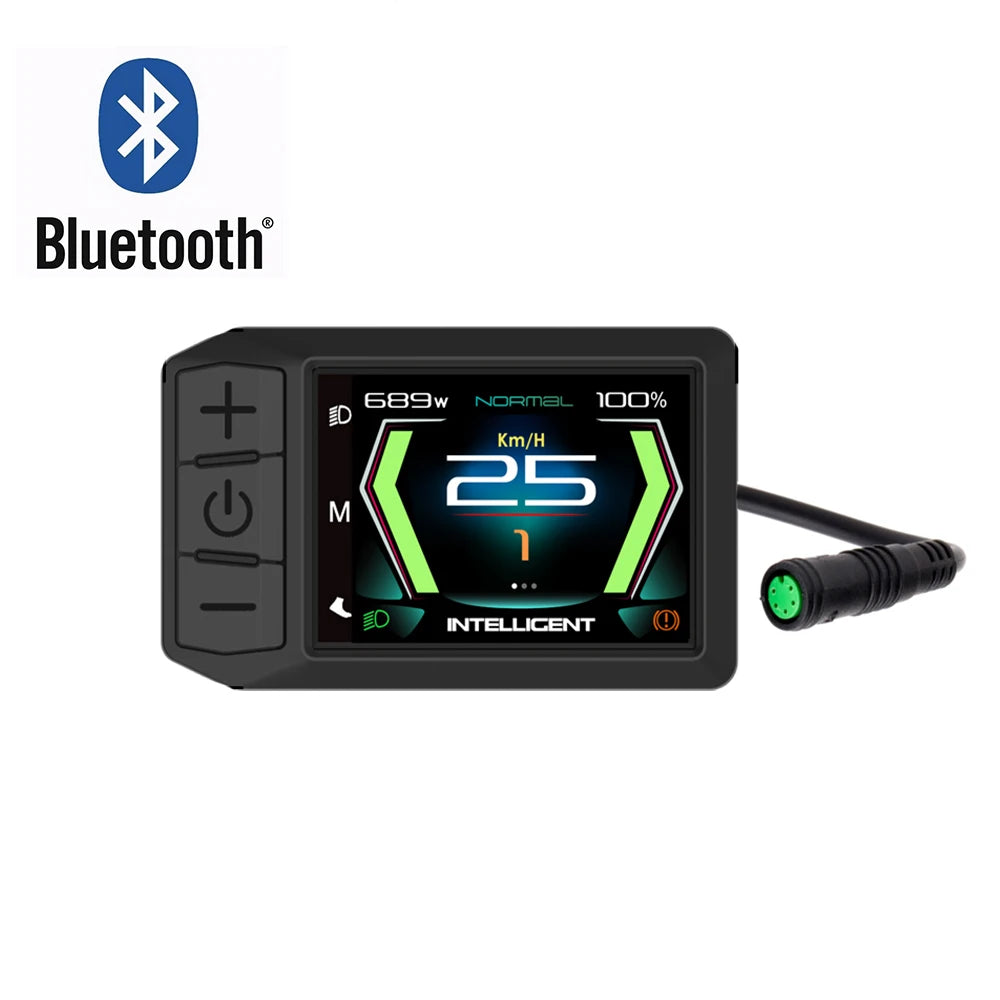

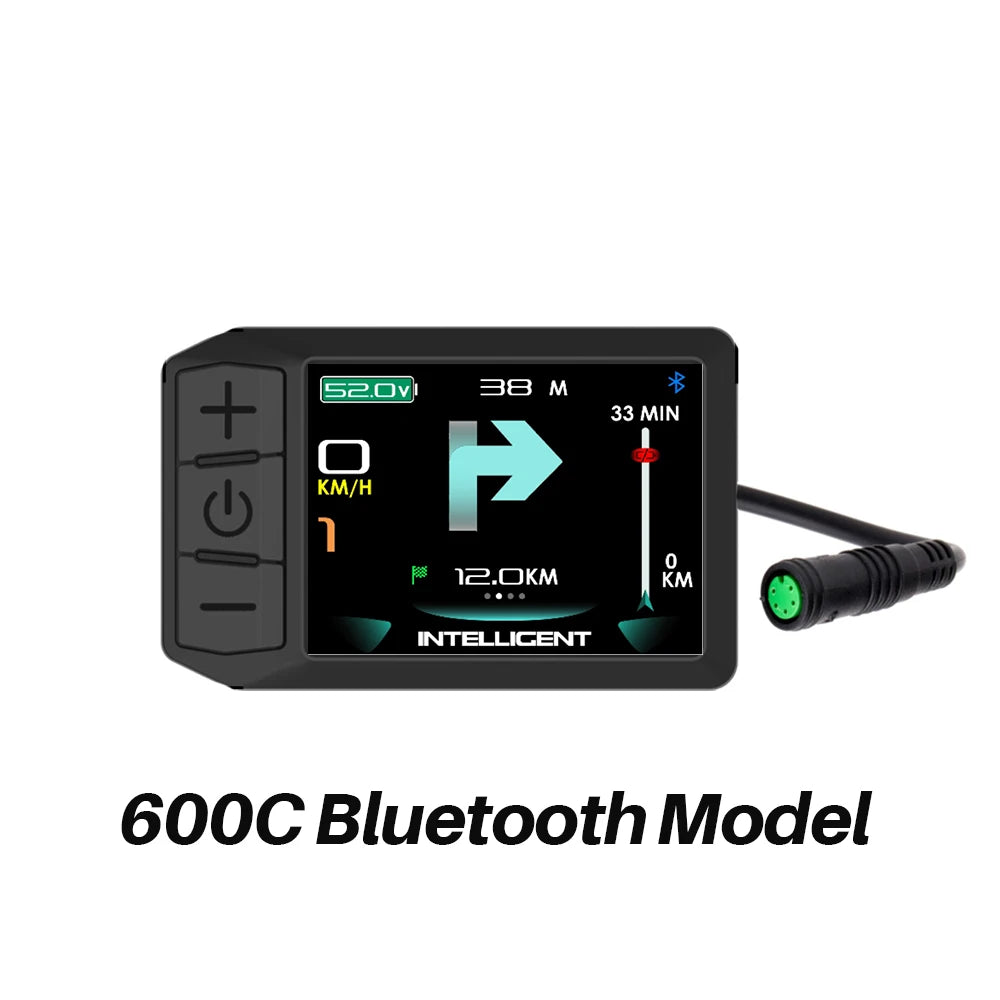

  • "600C Bluetooth"version display have Bluetooth function, if you order "600C" not have bluetooth function,please know.

Installation:

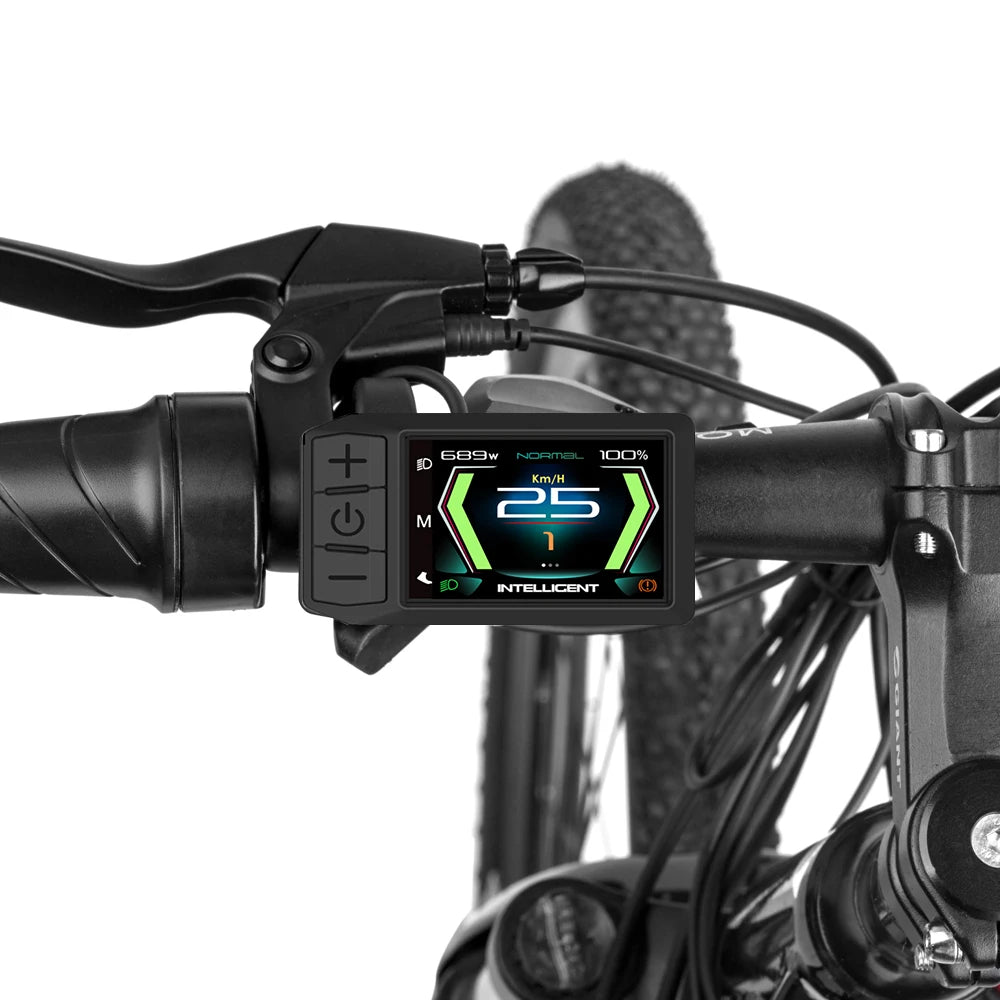

Install the display and button control on the handlebar and adjust its location. Plug it into the controller with power off.


Warranty Aggrement:

  • Motor Kits,warranty time12 month except phycial damage and wrong operation.

  • Battery,warranty time12 month except phycial damage and wrong operation.

  • Accessories,12 month except phycial damage and wrong operation.

Return & Refund:

It is our pleasure to see customers have fun with our products, if you decide to return

the items within 15 days after receipt,we will refund you, the return items must be in

original conditions.

Feedback:

Your satisfaction and positive feedback is very important for us, it will be very kindof you

to leave us 5 stares feedback, if you have any problems, feel free to ask us, we

will do our best to give you service.
